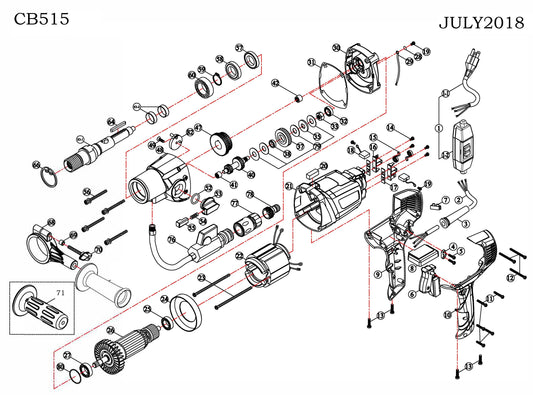

Shop By diagram:
Showing 1 to 1 of 1 items

Parts:
Showing 1 to 10 of 10 items

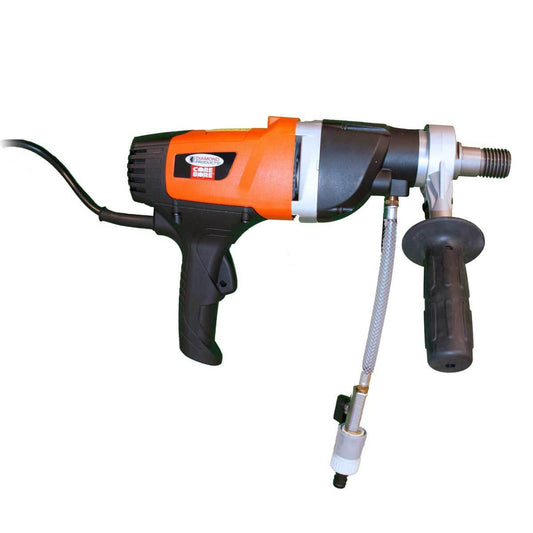

CB515 Hand Held Electric Core Drill Motor Parts

Keep your CB515 Hand Held Electric Core Drill performing at its best with genuine replacement parts designed to match the exact specifications of your motor. Our selection of diamond products core drill parts and dedicated CB515 components delivers consistent power, stability, and reliability for professional concrete coring applications.

Whether you’re replacing worn components or doing routine maintenance, our parts are engineered to support demanding drilling tasks. From high-performance diamond products core bits to core bore diamond products that enhance stability and control, each component is built to help you drill faster, cleaner, and more accurately.

  • 1800 Watt, 115 Volt Electric Motor: Provides robust power for demanding drilling tasks.
  • 2-Speed Gear Box (1400 rpm and 2300 rpm) with Slip Clutch: Offers flexibility and control for various applications.
  • Side Handle for Stable Coring: Ensures stability and precision during concrete coring operation.
  • 1.250"-7 Threaded Spindle with 5/8"-11 Adapter: Accommodates a wide range of bit sizes securely.
  • Water Hose Connection for Wet Drilling: Keeps the drill bit cool and minimizes dust.
  • PRCD/GFCI Class I Cord: Provides enhanced electrical safety.
  • Compatible with M-4 Stand and Hand-Held Motor Mounts: Offers versatility in mounting options.
  • Top Bubble Level for Accuracy: Ensures precise and level concrete drilling.
  • Lightweight Design (10.5 lbs.): Easy to handle and transport.
  • Includes Plastic Molded Carrying Case, Side Handle, 5/8"-11 Adapter, and Wrench: For added convenience and portability.

Choosing authentic diamond products core drill parts for your CB515 helps maintain peak performance, extends equipment life, and keeps your concrete coring projects running smoothly and safely.

Find the Right Part Fast

  1. Identify the equipment model and serial number.
  2. Click EQUIPMENT PARTS in the site header.
  3. Select Diamond Products Parts from the brand list.
  4. Choose your equipment category.
  5. Select the exact model number of your equipment.
  6. Use the interactive parts diagram to identify and add the correct part(s) to your cart.

Customer Support Promise

We stand behind every Diamond Products Core Bore part with real tech support and quick replies. Unsure which brushes, an armature, switch, or seal kit for your DK/CB motor? Send your model and article/serial, our techs can help you with reference diagrams and service notes to get you drilling again fast.

Contact: customerservice@danseusa.com · +1 (202) 630-1027



Frequently asked questions

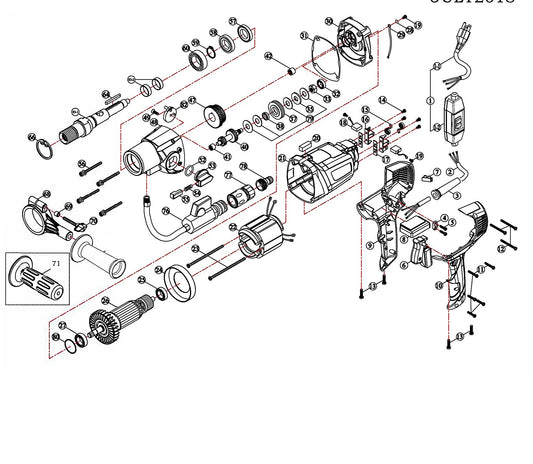

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved replacement, we ship the latest superseded revision

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
