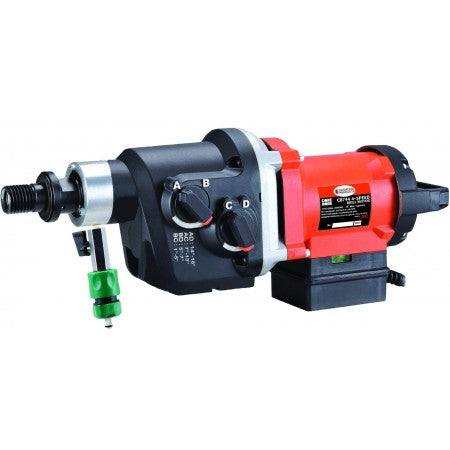

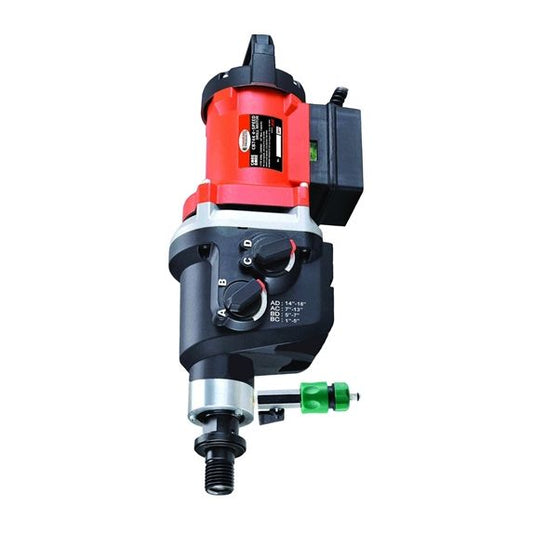

Genuine CB744 4-Speed Electric Drill Motor Parts

Keep your CB744 4-Speed Electric Concrete Core Drill functioning optimally with our genuine replacement parts. Designed specifically for the CB744 diamond products core drill, each component meets the highest standards for reliability and performance. From diamond products core drill parts to core bore diamond products accessories, we ensure that your equipment can handle any task with precision and efficiency. Key features and components include:

  • 4-Speed Electric Motor: Offers enhanced control and power for heavy-duty concrete drilling applications.
  • 25 Amp, 115 Volt Power: Provides robust power for demanding drilling tasks.
  • Up to 18" Bit Capacity: Supports larger bit sizes for more extensive projects.
  • Built-in LED Amp Meter: Allows for real-time monitoring of motor performance without the need for a control panel.
  • Water Hose Connection: Facilitates wet drilling, keeping the bit cool and minimizing dust.
  • 1.250"-7 Threaded Spindle: Ensures a precise and secure fit for various drill bits.
  • Slip Clutch: Provides added safety by preventing over-torque.
  • Bubble Level: Ensures accurate and level drilling.
  • Carrying Handle: Makes transportation easy and convenient.
  • Extra Long Cord: Offers greater reach and flexibility during concrete coring operation.
  • Includes Open End Wrench: For convenient adjustments and maintenance.

Whether you're using the diamond products core drill for everyday commercial work or demanding professional jobs, our core drill diamond products replacement parts help you maintain the quality of your results. Count on our complete range of CB744 diamond products core drill parts to sustain your drill’s performance and enable you to tackle any concrete drilling challenge with confidence.

Quick CB744 Shop by Diagram links

Find the Right Part Fast

  1. Identify the equipment model and serial number.
  2. Click EQUIPMENT PARTS in the site header.
  3. Select Diamond Products Parts from the brand list.
  4. Choose your equipment category.
  5. Select the exact model number of your equipment.
  6. Use the interactive parts diagram to identify and add the correct part(s) to your cart.

Customer Support Promise

We stand behind every Diamond Products Core Bore part with real tech support and quick replies. Unsure which brushes, an armature, switch, or seal kit for your DK/CB motor? Send your model and article/serial, our techs can help you with reference diagrams and service notes to get you drilling again fast.

Contact: customerservice@danseusa.com · +1 (202) 630-1027

FAQs

What kind of work is the CB744 4-speed drill motor best for?
It’s designed for heavy-duty, anchored concrete coring where you’re running larger bits and need plenty of torque and control.
How should I choose the correct gear when drilling?
Use lower gears for larger diameter bits or harder concrete, and higher gears for smaller bits and lighter cuts to keep the motor from overloading.
How do I maintain my CB744 drill motor?
Regular cleaning and lubrication of moving parts, as well as timely replacement of worn components, will ensure optimal performance.

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved replacement, we ship the latest superseded revision

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
