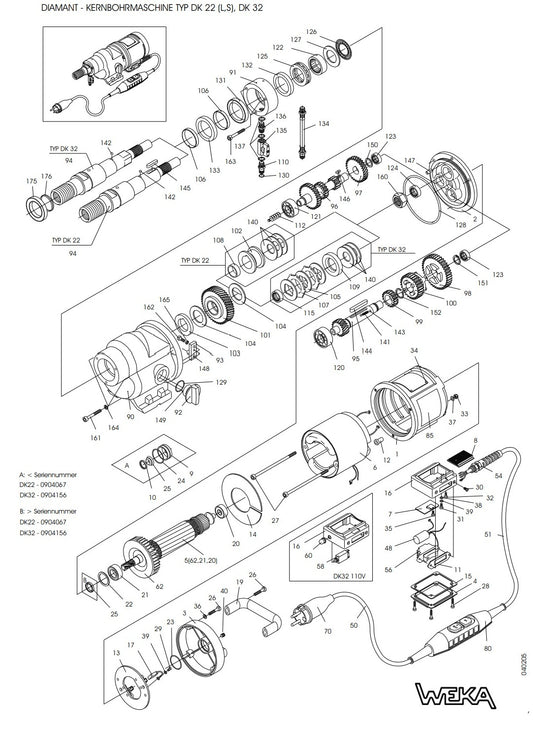

Shop By diagram:
Showing 1 to 1 of 1 items

Parts:
Showing 1 to 36 of 108 items

View More

Genuine DK22 Weka Core Drill Motor Parts by Core Bore

Enhance the performance and longevity of your Weka DK22 Concrete Drill Motor with our high-quality replacement parts. Our selection includes essential Weka core drill parts that ensure your core drill functions at its best. Designed for heavy-duty applications, these components are perfect for professionals who demand reliability and efficiency.

Our diamond products core drill are crafted to withstand the rigors of concrete drilling. Enjoy seamless compatibility with diamond products core bits and experience the difference in your drilling projects.

  • Heavy-Duty Performance: Engineered for rigorous concrete drilling tasks, ideal for professional use.
  • Versatile Coring Capacity: Recommended for bits ranging from 1 inch to 12 inches, with a maximum capacity of 16 inches.
  • Water Connection Ready: Equipped with a water connection for efficient wet concrete coring applications.
  • Robust Design: Features a 1.250-7 threaded spindle, ensuring compatibility with a wide range of drilling accessories.

Maintain your equipment's efficiency with our high-quality diamond products parts to ensure you have the right tools for the job. Browse our range of core drill diamond products to keep your Weka core drill in peak condition.

Find the Right Part Fast

  1. Identify the equipment model and serial number.
  2. Click EQUIPMENT PARTS in the site header.
  3. Select Diamond Products Parts from the brand list.
  4. Choose your equipment category.
  5. Select the exact model number of your equipment.
  6. Use the interactive parts diagram to identify and add the correct part(s) to your cart.

Customer Support Promise

We stand behind every Diamond Products Core Bore (WEKA) part with real tech support and quick replies. Unsure which brushes, an armature, switch, or seal kit for your WEKA DK/CB motor? Send your model and article/serial, our techs can help you with reference diagrams and service notes to get you drilling again fast.

Contact: customerservice@danseusa.com · +1 (202) 630-1027

FAQs

What kind of work is the Weka DK22 designed for?
This core drill motor is built for professional concrete coring, typically using bits from 1" up to 12", with a maximum capacity of 16" for heavier jobs.
What is the difference between the L and S versions?
On DK22 units, the L and S versions use different gear and spindle components, which change the speed and torque. Always match parts to the exact version shown on your motor nameplate.
Do I need to use water when drilling with this core drill?
Yes, this model is water-connection ready and intended for wet drilling. Using water helps cool the bit, reduce dust, and extend the life of both the motor and core bits.
When should I replace the carbon brushes?
Replace the brushes if you see excessive sparking, reduced power, or if they are worn close to their minimum length when inspected during regular maintenance.
What should I do if I can’t find the correct part number?
Email your DK22 model (L or S), voltage, and clear photos or part details to customerservice@danseusa.com, and our team will help you identify the right replacement part.

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved replacement, we ship the latest superseded revision

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
