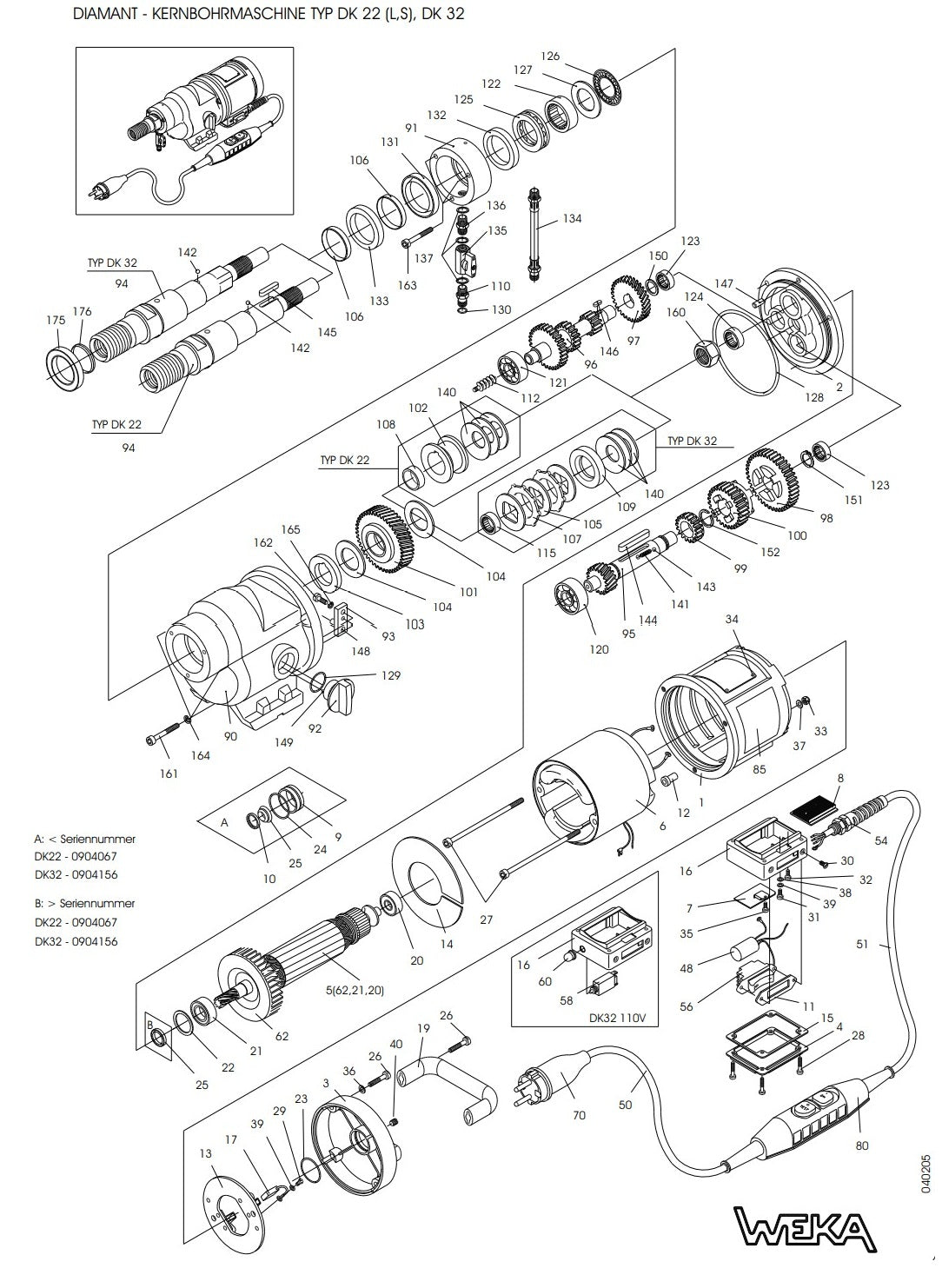

WEKA DK 22 (L,S), DK 32 Motor Core Drill Parts By Core Bore Diamond Products

WEKA DK 22 (L,S), DK 32 Motor Core Drill Parts By Core Bore Diamond Products

  • WEKA DK 22 (L,S), DK 32 Motor Core Drill Parts By Core Bore Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2700831 Motor Case for DK22 WEKA Core Cut by Diamond Products
$290.40
2b
2703255 Intermediate Flange for DK22 WEKA Core Cut by Diamond Products
$152.40
3
2700833 Motor Top Hood for DK22 WEKA Core Cut by Diamond Products
$114.78
4
2700834 Terminal Case Cover for DK22 WEKA Core Cut by Diamond Products
$32.36
5c
2703251 Armature w/Fan and Bearings (230V) for DK22 WEKA Core Cut by Diamond Products
$452.40
5d
2703252 Armature w/Fan and Bearings (110V) for DK22 WEKA Core Cut by Diamond Products
$452.40
6
2701524 Field (230V) for DK22 WEKA Core Cut by Diamond Products
$289.20
6
2700836 Field (110V) for DK22 WEKA Core Cut by Diamond Products
$272.40
11
2701584 Switch Sealing for DK22 WEKA Core Cut by Diamond Products
$9.74
12
2700839 Field Screw Insulating Sleeve for DK22 WEKA Core Cut by Diamond Products
$11.41
13
2700840 Brush Holder Disk for DK22 WEKA Core Cut by Diamond Products
$81.78
14
2700841 Air Conducting Disk for DK22 WEKA Core Cut by Diamond Products
$10.27
15
2701080 Terminal Case Sealing for DK22 WEKA Core Cut by Diamond Products
$6.36
16a
2701396 Terminal Case / thermal for DK22 WEKA Core Cut by Diamond Products
$48.35
16b
2703262 Terminal Case / electronic for DK22 WEKA Core Cut by Diamond Products
$50.18
17
2701532 Carbon Brush (230V) for DK22 WEKA Core Cut by Diamond Products
$19.52
17
2700845 Carbon Brush (110V) for DK22 WEKA Core Cut by Diamond Products
$23.30
18a
2703257 Electronic Module (230V) for DK22 WEKA Core Cut by Diamond Products
$129.60
18b
2703258 Electronic Module (110V) for DK22 WEKA Core Cut by Diamond Products
$270.00
18b
2703261 Cooling Profile for DK22 WEKA Core Cut by Diamond Products
$32.29
20
2700846 Ball Bearing for DK22 WEKA Core Cut by Diamond Products
$28.51
21
2700773 Ball Bearing for DK22 WEKA Core Cut by Diamond Products
$29.62
22
2700848 Compensation Washer for DK22 WEKA Core Cut by Diamond Products
$6.99
23
2700849 O-Ring for DK22 WEKA Core Cut by Diamond Products
$4.99
25b
2703241 Rotary Shaft Seal for DK22 WEKA Core Cut by Diamond Products
$23.22
25c
2703250 Exchange Seal Bush for DK22 WEKA Core Cut by Diamond Products
$27.11
26
2700852 Hex. Socket Head Screw M6x35 for DK22 WEKA Core Cut by Diamond Products
$3.99
27
2700853 Hex. Socket Head Screw M5x120 for DK22 WEKA Core Cut by Diamond Products
$11.11
28
2700854 Fill. Head Screw M4x40 for DK22 WEKA Core Cut by Diamond Products
$3.99
30
2700856 Slot. Count. Head Screw M4x6 for DK22 WEKA Core Cut by Diamond Products
$2.99
31
2700674 Slot. Pan Head Screw M4x6 for DK22 WEKA Core Cut by Diamond Products
$2.99
32
2700675 Pan Head Tapping Screw3,9x9,5 for DK22 WEKA Core Cut by Diamond Products
$2.99
33
2700858 Hexagon Nut M5 for DK22 WEKA Core Cut by Diamond Products
$2.99
34
2700678 Round Head grooved Pin for DK22 WEKA Core Cut by Diamond Products
$2.99
36
2700826 Locking Washer for DK22 WEKA Core Cut by Diamond Products
$2.99
164
2700826 Locking Washer for DK22 WEKA Core Cut by Diamond Products
$2.99
37
2700861 Curved Spring Washer for DK22 WEKA Core Cut by Diamond Products
$2.99
38
2700680 Curved Spring Washer for DK22 WEKA Core Cut by Diamond Products
$2.99
39
2700681 Medium Washer for DK22 WEKA Core Cut by Diamond Products
$2.99
48
2700683 Int. Suppr. Capacitor for DK13 WEKA Core Cut by Diamond Products
$16.26
50
2701541 Cord AWG 16 230V for DK22 WEKA Core Cut by Diamond Products
$75.50
50
2700866 Cord AWG 14 110V for DK22 WEKA Core Cut by Diamond Products
$87.16
56
2700886 Motor Switch for DK22 WEKA Core Cut by Diamond Products
$76.45
62
2700692 Fan for DK22 WEKA Core Cut by Diamond Products
$31.36
90
2700870 Gear Box for DK22 WEKA Core Cut by Diamond Products
$424.80
91
2700871 Water Supply Bush for DK22 WEKA Core Cut by Diamond Products
$94.47
92
2700872 Gear Change Grip for DK22 WEKA Core Cut by Diamond Products
$65.69
93
2700695 Gear Change Lever for DK22 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
94
2700874 Drilling Spindle 1 1/4" UNC for DK22 WEKA Core Cut by Diamond Products
$290.40
95
2700875 Gear Change Shaft for DK22 WEKA Core Cut by Diamond Products
$172.26
95
2701530 Gear Change Shaft Type L for DK22 WEKA Core Cut by Diamond Products
$184.14
95
2701082 Gear Change Shaft Type S for DK22 WEKA Core Cut by Diamond Products
$200.40
96
2700876 Pinion Shaft for DK22 WEKA Core Cut by Diamond Products
$231.60
97
2700877 Spur Wheel for DK22 WEKA Core Cut by Diamond Products
$82.04
98
2700878 Gear Wheel 1 for DK22 WEKA Core Cut by Diamond Products
$141.60
99
2700879 Gear Wheel 3 for DK22 WEKA Core Cut by Diamond Products
$108.78
100
2700880 Slide Gear Wheel for DK22 WEKA Core Cut by Diamond Products
$174.00
101
2700881 Spindle Wheel for DK22 WEKA Core Cut by Diamond Products
$128.40
101
2701531 Spindle Wheel Type L for DK22 WEKA Core Cut by Diamond Products
$150.00
101
2701078 Spindle Wheel Type S for DK22 WEKA Core Cut by Diamond Products
$150.00
102
2700882 Pressure Shell for DK22 WEKA Core Cut by Diamond Products
$50.58
103
2700883 Supporting Disk for DK22 WEKA Core Cut by Diamond Products
$17.77
103
2701083 Supporting Disk Type S for DK22 WEKA Core Cut by Diamond Products
$21.11
104
2700884 Brake Disk for DK22 WEKA Core Cut by Diamond Products
$24.44
106
2701064 Shaft Wearing Sleeve for DK22 WEKA Core Cut by Diamond Products
$17.08
108
2701079 Bearing Socket for DK22 WEKA Core Cut by Diamond Products
$23.39
110
2700706 Quick Connect Nipple for DK22 WEKA Core Cut by Diamond Products
$29.42
120
2700791 Ball Bearing for DK22 WEKA Core Cut by Diamond Products
$31.84
121
2700792 Ball Bearing for DK22 WEKA Core Cut by Diamond Products
$34.51
122
2700793 Needle Bearing for DK22 WEKA Core Cut by Diamond Products
$86.51
123
2700794 Needle Bush for DK22 WEKA Core Cut by Diamond Products
$25.90
124
2700795 Needle Bush for DK22 WEKA Core Cut by Diamond Products
$31.03
125
2700796 Thrust Ball Bearing for DK22 WEKA Core Cut by Diamond Products
$71.20
126
2700797 Thrust Needle Bearing for DK22 WEKA Core Cut by Diamond Products
$19.37
127
2700798 Thrust Bearing Washer for DK22 WEKA Core Cut by Diamond Products
$8.74
128
2700799 O-Ring for DK22 WEKA Core Cut by Diamond Products
$6.11
129
2700711 O-Ring for DK22 WEKA Core Cut by Diamond Products
$3.99
130
2700712 O-Ring for DK22 WEKA Core Cut by Diamond Products
$3.99
131
2700802 Rotary Shaft Seal for DK22 WEKA Core Cut by Diamond Products
$27.44
132
2700803 Rotary Shaft Seal for DK22 WEKA Core Cut by Diamond Products
$22.22
133
2700804 Rotary Shaft Seal for DK22 WEKA Core Cut by Diamond Products
$27.38
135
2700715 Ball Valve for DK22 WEKA Core Cut by Diamond Products
$40.05
135
2700925 Grip for Ball Valve for DK22 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
136
2700716 Double Nipple for DK22 WEKA Core Cut by Diamond Products
$13.81
137
2700717 Sealing Ring for DK22 WEKA Core Cut by Diamond Products
$3.99
140
2700809 Disk Spring for DK22 WEKA Core Cut by Diamond Products
$6.07
141
2700810 Pressure Spring for DK22 WEKA Core Cut by Diamond Products
$7.65
142
2700811 Ball for DK22 WEKA Core Cut by Diamond Products
$3.99
143
2700720 Ball for DK22 WEKA Core Cut by Diamond Products
$3.99
144
2700813 Parallel Key for DK22 WEKA Core Cut by Diamond Products
$4.99
145
2700814 Parallel Key for DK22 WEKA Core Cut by Diamond Products
$4.99
146
2700815 Parallel Key for DK22 WEKA Core Cut by Diamond Products
$3.99
147
2700816 Parallel Pin for DK22 WEKA Core Cut by Diamond Products
$3.99
148
2700817 Parallel Pin for DK22 WEKA Core Cut by Diamond Products
Call for Price call for price call for price
149
2700723 Parallel Pin for DK22 WEKA Core Cut by Diamond Products
$3.99
150
2700819 Shim Ring for DK22 WEKA Core Cut by Diamond Products
$3.99
151
2700820 Retaining Ring for DK22 WEKA Core Cut by Diamond Products
$3.99
152
2700821 Retaining Ring for DK22 WEKA Core Cut by Diamond Products
$3.99
160
2700822 Hexagon Nut M22x1,5 for DK22 WEKA Core Cut by Diamond Products
$16.26
161
2700823 Hex. Soc. Head Screw M6x50 for DK22 WEKA Core Cut by Diamond Products
$3.99
162
2700733 Hex. Soc. Head Screw M5x12 for DK22 WEKA Core Cut by Diamond Products
$2.99
163
2700825 Hex. Soc. Head Screw M5x45 for DK22 WEKA Core Cut by Diamond Products
$3.99
165
2700735 Locking Washer for DK22 WEKA Core Cut by Diamond Products
$2.99
170
2700737 Adhesive Sticker for DK13 WEKA Core Cut by Diamond Products
$9.37
170
2700829 Gear Oil (300 ml) for DK22 WEKA Core Cut by Diamond Products
$17.41
170
2700806 B-Valve Assembly for DK22 WEKA Core Cut by Diamond Products
$60.48
