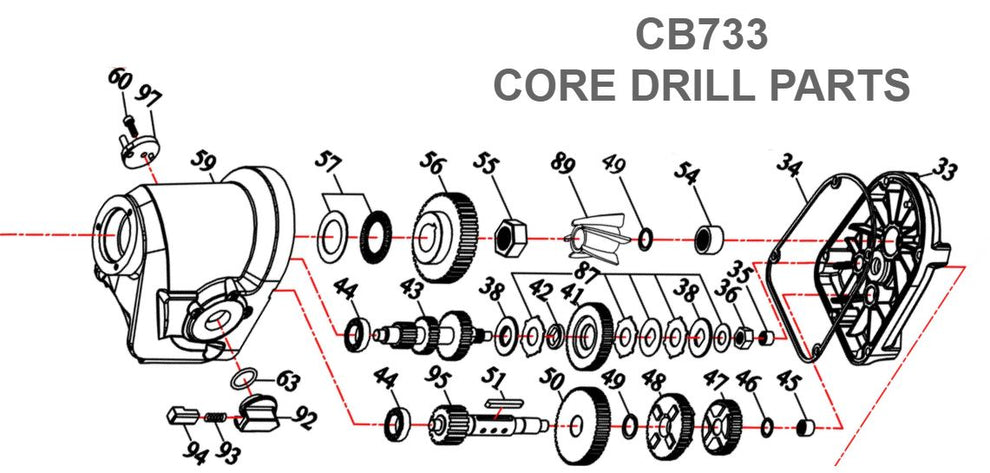

Gears, Shafts and Housing Parts for CB733 Core Drill by Core Bore Diamond Products

Gears, Shafts and Housing Parts for CB733 Core Drill by Core Bore Diamond Products

  • Gears, Shafts and Housing Parts for CB733 Core Drill by Core Bore Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
33
2709023 GEAR PLATE for CB744 Concrete Drill Core Cut by Diamond Products
$85.01
34
2709024 GASKET for CB744 Concrete Drill Core Cut by Diamond Products
$11.13
35
2709025 NEEDLE BEARING HK 0810 for CB744 Concrete Drill Core Cut by Diamond Products
$17.22
36
2709026 CLUTCH NUT M12 x P1.75 x 9T for CB744 Concrete Drill Core Cut by Diamond Products
$8.32
38
2709027 PRESSURE DISC Ø34.8 x Ø16 x 2.5 for CB744 Concrete Drill Core Cut by Diamond Products
$11.80
41
2709028 INPUT GEAR M1.25 x 44T for CB744 Concrete Drill Core Cut by Diamond Products
$94.43
42
2709029 BUSHING Ø15.9 x Ø22 x 4.7 for CB744 Concrete Drill Core Cut by Diamond Products
$6.99
43
2709085 Input Shaft for CB733 Drill by Core Bore Diamond Products
$224.73
44
2709031 BALL BEARING 6200 for CB744 Concrete Drill Core Cut by Diamond Products
$20.45
45
2709032 NEEDLE BEARING HK 1010 for CB744 Concrete Drill Core Cut by Diamond Products
$12.40
46
2709086 Internal Circlip for CB733 Core Drill for Core Bore Diamond Products
$3.99
47
2709087 Countershaft Set for CB733 Core Drill by Core Bore Diamond Products
$88.24
48
Diamond Products SPINDLE GEAR M1.5 x 38T 2709088
$118.00
49
2709033 INTERNAL CIRCLIP IS18 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
50
2709089 Lay Gear for CB733 Core Drill by Core Bore Diamond Products
$88.24
51
2709090 Parallel Key for CB733 Core Drill by Core Bore Diamond Products
$6.99
54
2709039 Needle Bearing TA1815 for CB733 and CB744 Core Drill for Core Bore Diamond Products
$36.59
55
2709091 Lock Nut M20 for CB733 CB744 Core Drill by Core Cut Diamond Products
$9.95
56
2709092 Output Gear Parts for CB733 Core Drill by Core Cut Diamond Products
$170.28
57
2709044 Thrust Bearing NTB3047 for CB733 and CB744 Core Drill by Core Cut Diamond Products
$53.20
60
2709094 Screw M5 X 12 SHCS for CB733 Core Drill by Core Bore Diamond Products
$3.99
63
2709047 O-RING Ø20 x 3 for CB744 Concrete Drill Core Cut by Diamond Products
$11.84
92
2709065 GEAR SELECTOR for CB744 Concrete Drill Core Cut by Diamond Products
$31.21
93
2709066 SPRING Ø0.6 x Ø3.8 x Ø5 x 11T x 35L for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
94
2709067 RELEASE PIN for CB744 Concrete Drill Core Cut by Diamond Products
$12.91
59
2709093 Gear Housing for CB733 Core Drill by Core Bore Diamond Products
$225.72
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
