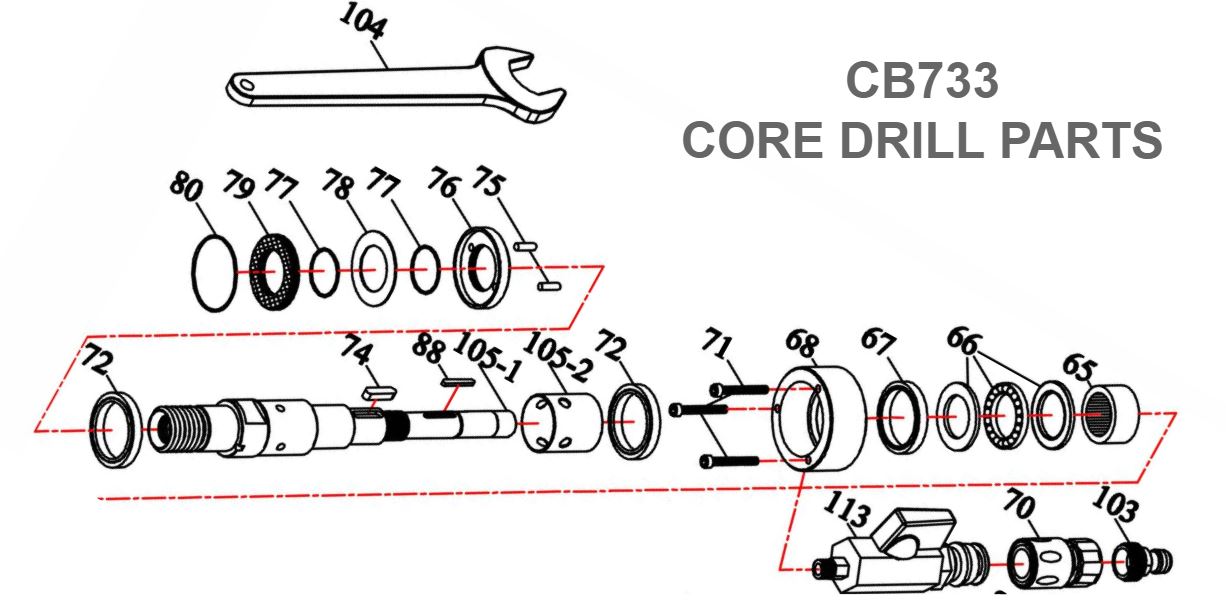

CB733 Spindle and Gearbox Parts by Core Cut Diamond Products

CB733 Spindle and Gearbox Parts by Core Cut Diamond Products

  • Spindle and Gearbox Parts by Core Cut Diamond Products
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
65
2709048 NEEDLE BEARING TA3020 for CB744 Concrete Drill Core Cut by Diamond Products
$60.26
66
2709049 THRUST BEARING 51106 for CB744 Concrete Drill Core Cut by Diamond Products
$43.04
67
2709050 OIL SEAL Ø40 x Ø50 x 7 for CB744 Concrete Drill Core Cut by Diamond Products
$12.76
70
6078471 WATER COUPLING for CB744 Concrete Drill Core Cut by Diamond Products
$11.86
71
2709054 SOCKET CAP SCREW M5 x 40 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
72
2709055 OIL SEAL Ø40 x Ø52 x 7 for CB744 Concrete Drill Core Cut by Diamond Products
$12.84
74
2709096 Parallel Key for CB733 Core Drill Motor by Core Cut Diamond Products
$4.99
75
2709056 DOWEL PIN Ø4 x 11.8 for CB744 Concrete Drill Core Cut by Diamond Products
$7.46
76
2709057 ANTI-SEIZE CUP for CB744 Concrete Drill Core Cut by Diamond Products
$39.71
77
2709058 O-RING Ø32 x 1.5 for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
78
2709059 THRUST RING 3252 for CB744 Concrete Drill Core Cut by Diamond Products
$12.18
79
2709060 ANTI-SEIZE RING for CB744 Concrete Drill Core Cut by Diamond Products
$50.24
80
2709061 O-RING Ø49 x 1.5 for CB744 Concrete Drill Core Cut by Diamond Products
$10.14
103
6078472 FITTING for CB744 Concrete Drill Core Cut by Diamond Products
$3.99
104
2709103 WRENCH M32 for CB744 Concrete Drill Core Cut by Diamond Products
$48.46
105
2709726 Spindle Set for CB733 Core Drill Motor by Core Bore Diamond Products
$290.07
105-1
2709095 Spindle 1.250-7 for CB733 Core Drill by Core Cut Diamond Products
$244.50
105-2
2709111 STAINLESS BUSHING for CB744 Concrete Drill Core Cut by Diamond Products
$50.58
68
2709051 WATER FEED COLLAR for CB744 Concrete Drill Core Cut by Diamond Products
$97.93
